[TASK] Controlling user-definable onboard LED

[TASK] Controlling user-definable onboard LED

Postby admin » Wed Nov 04, 2015 2:56 pm

We will go through an example of controlling user-definable LED on a PHPoC Blue.



Source Codes
1. task0.php

Code: Select all

<?php

if(_SERVER("REQUEST_METHOD"))
    exit; // avoid php execution via http request

include_once
"/lib/sd_340.php";

echo
"PHPoC example : P4S-34X / UIO / blink on-board LED\r\n";

uio_setup
(0, 30, "out high");
uio_setup(0, 31, "out high");

while(1)
{
    uio_out(0, 30, LOW);
    uio_out(0, 31, HIGH);
    usleep(250000);

    uio_out
(0, 30, HIGH);
    uio_out(0, 31, LOW);
    usleep(250000);
}

?>

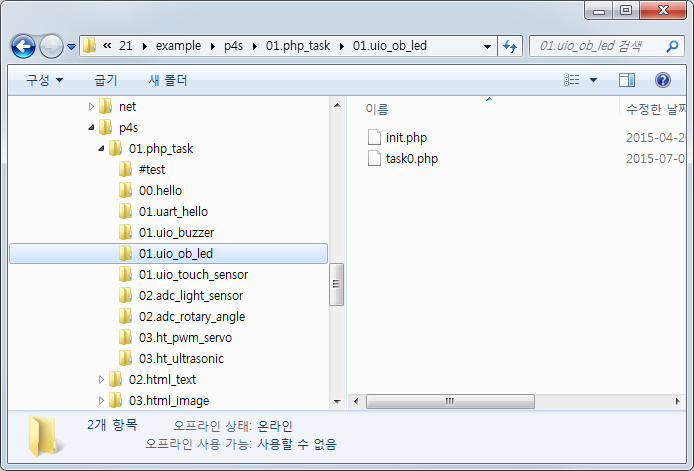

Please download a PSP (PHPoC Support Package) of libraries and examples from PHPoC, and upload it in the PHPoC Blue.
