This mode is used to precisely generate PWM signal. PWM signal is the endless chain of identical rectangular pulses. In other words, PWM signal is periodical signal, each cycle is a rectangular pulse. PWM signal is composed of low-level signal and high-level signal.
Command | Sub Command | Description | |||
---|---|---|---|---|---|
set | mode | output | pwm | set mode: pwm | |
div | ms | set unit: millisecond | |||
us | set unit: microsecond | ||||
output | od | open-drain | |||
pp | push-pull | ||||
low | output LOW | ||||
high | output HIGH | ||||
invert | 0 | not invert output | |||
1 | invert output | ||||
count | [T1] [T2] | set output timing parameters | |||
trigger | from | ht0 | set trigger target: ht0 | ||
php | set trigger target: none | ||||
reset | - | reset | |||
get | state | get current state | |||
div | get division rate | ||||
start | - | start | |||
stop | - | stop |
In output PWM mode, this command is used to specify the low-level duration and high-level duration. The unit of time is specified in "set div" command.
Command | Syntax |
---|---|
set count | pid_ioctl($pid, "set count T1 T2"); |
Valid values for T1 and T2 in pulse mode are as follows:
Division | Available Count Values |
---|---|
T1 | 1 ~ 32763 |
T2 | 1 ~ 32763 |
T1 + T2 | 2 ~ 32764 |
This command must be used before timer starts.
If not, an error is generated.

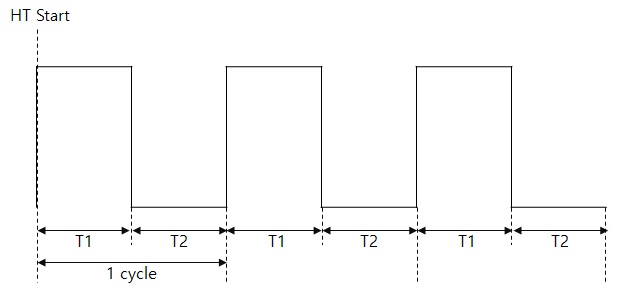

The figure below shows waveform of PWM signal
※ Duty cycle = T1 / (T1 + T2)
※ Frequency = 1 / (T1 + T2)
This command immediately forces HT pin to LOW or HIGH.
Command | Syntax | Description |
---|---|---|
set output low | pid_ioctl($pid, "set output low"); | Set HT pin to LOW |
set output high | pid_ioctl($pid, "set output high"); | Set HT pin to HIGH |
Note that if invert mode is enabled, this command will force HT pin to the state that is invert of normal operation.
This command set output type of HT pin
Command | Syntax | Description |
---|---|---|
set output pp | pid_ioctl($pid, "set output pp"); | Set output type to push-pull |
set output od | pid_ioctl($pid, "set output od"); | Set output type to open-drain |
If the command is not used, the output type of HT pin is push-pull by default.
This command is used to enable/disable invert mode.
Command | Syntax | Description |
---|---|---|
set output invert 0 | pid_ioctl($pid, "set output invert 0"); | disbale invert mode |
set output invert 1 | pid_ioctl($pid, "set output invert 1"); | enable invert mode |

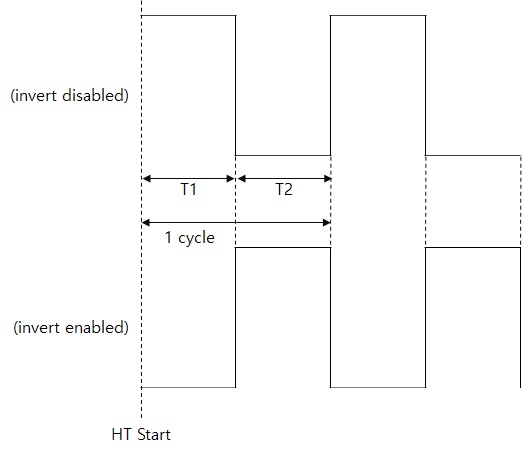

When invert mode is enabled:
Invert mode is disabled by default.
<?php
$pid = pid_open("/mmap/ht0"); // open HT 0
pid_ioctl($pid, "set div us"); // set unit: microsecond
pid_ioctl($pid, "set mode output pwm"); // set mode: PWM mode
pid_ioctl($pid, "set count 1 1"); // set count values: 1, 1
pid_ioctl($pid, "start"); // start HT
usleep(50);
pid_ioctl($pid, "stop"); // stop HT
pid_close($pid);
?>

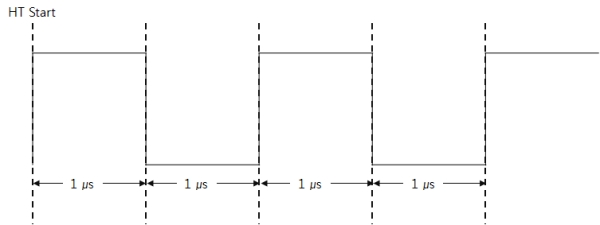

The figure below shows waveform of the example above.
