Toggle Mode


Overview

This mode is used to precisely generate rectangular wave, which can be a single pulse or a chain of pulses with various durations. In this mode, HT pin is toggled after each predefined time durations.

Waveform of HT pin will depend on:

Available Commands

Command Sub Command Description
set mode output toggle set mode: toggle
div ms set unit: millisecond
us set unit: microsecond
output od open-drain
pp push-pull
low output LOW
high output HIGH
invert 0 not invert output
1 invert output
count [T1] ... [T8] set output timing parameters
repc [N] set repeat count
trigger from ht0 set trigger target: ht0
php set trigger target: none
reset - reset
get state get current state
div get division rate
repc get remaining repeat count
start - start
stop - stop

Set Repeat Count

In output toggle mode, this command is used to set the number of times of toggling.

Command Syntax Valid range of N
set repc pid_ioctl($pid, "set repc N"); 0 to 64

If the command is not used, the default value is zero. Setting this value to zero means the maximum repeat count (64). (see example of waveform in "Set Count Values" section)

Set Count Values

In output toggle mode, this command is used to specify list of time duration that right after the time duration is elapsed, output signal at HT pin is toggled. The unit of time is specified in "set div" command. The number of the time duration ranges from one to eight. Valid value for each time duration is from 1 to 32764.

Command Syntax Valid range of each T
set count pid_ioctl($pid, "set count T1 T2 … T8"); 1 to 32764

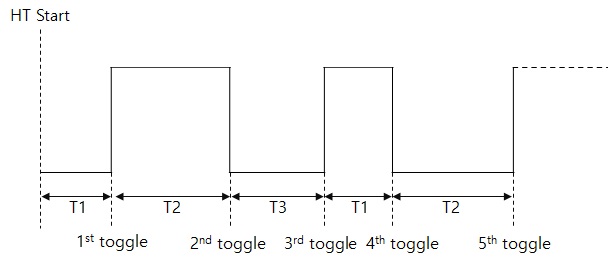

This command must be used before timer starts. If not, an error is generated. The list of duration time is used in circular order if the number of times of toggling exceeds the number of the specified time duration. The figure below shows waveform in the case of:

ht_set_toggle_03

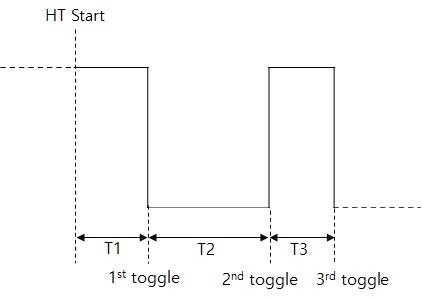

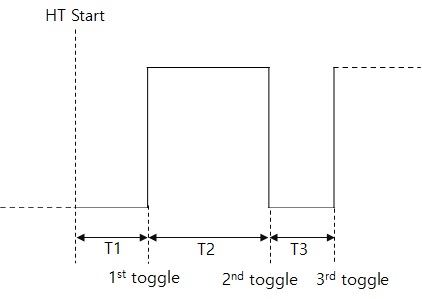

Note that: Waveform is depended on the states of HT pin at the time timer starts. The following example depicts the different signal when states of HT pin at the time timer start are different. The number of toggling times is three. Time durations between two consecutive toggles are T1, T2 and T3, respectively.

ht_set_toggle_01

ht_set_toggle_02

State of HT pin can be:

Time durations between two consecutive toggles can be set by using "set count" command.

Set Output [low/high]

This command immediately forces HT pin to LOW or HIGH.

Command Syntax Description
set output low pid_ioctl($pid, "set output low"); Set HT pin to LOW
set output high pid_ioctl($pid, "set output high"); Set HT pin to HIGH

Note that if invert mode is enabled, this command will force HT pin to the state that is invert of normal operation.

Set Output [od/pp]

This command set output type of HT pin

Command Syntax Description
set output pp pid_ioctl($pid, "set output pp"); Set output type to push-pull
set output od pid_ioctl($pid, "set output od"); Set output type to open-drain

If the command is not used, the output type of HT pin is push-pull by default.

Set Output Invert [0/1]

This command is used to enable/disable invert mode.

Command Syntax Description
set output invert 0 pid_ioctl($pid, "set output invert 0"); disbale invert mode
set output invert 1 pid_ioctl($pid, "set output invert 1"); enable invert mode

When invert mode is enabled:

When the invert mode is changed (from enabled to disabled or vice versa), HT pin is toggled immediately.

Invert mode is disabled by default.

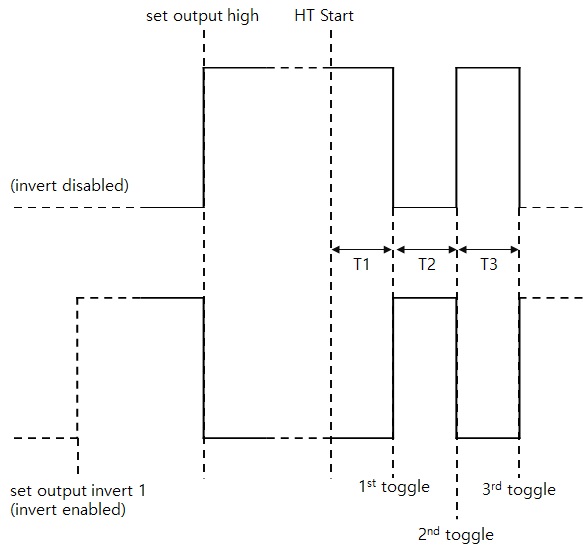

The following example depicts the different signal when invert mode is disabled and enabled. The number of toggling time is three. Duration time between two consecutive toggles are T1, T2 and T3, respectively. "set output high" command is used before timer starts.

ht_set_toggle_06

As shown in above figure, when invert mode is enabled, "set output high" command forces HT pin signal to LOW.

Example of Toggle Mode

example of toggle mode

<?php
$pid = pid_open("/mmap/ht0");               // open HT 0
pid_ioctl($pid, "set div us");              // set unit: microsecond
pid_ioctl($pid, "set mode output toggle");  // set mode: toggle
pid_ioctl($pid, "set repc 1");              // set repeat count: 1
pid_ioctl($pid, "set count 1");             // set count T1: 1
pid_ioctl($pid, "start");                   // start HT
while(pid_ioctl($pid, "get state"));
pid_close($pid);
?>

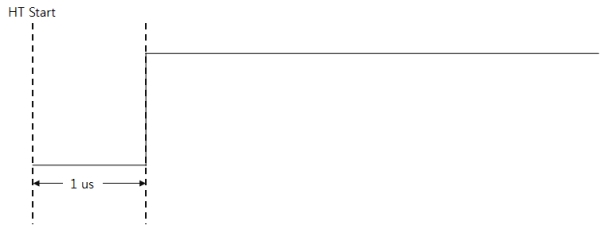

The meaning of "set count" is amount of time between starting HT and output toggle signal. The figure below shows waveform of the above example.

ht_set_toggle_04

example of repetitive toggle mode

<?php
$pid = pid_open("/mmap/ht0");               // open HT 0
pid_ioctl($pid, "set div us");              // set unit: microsecond
pid_ioctl($pid, "set mode output toggle");  // set mode: toggle
pid_ioctl($pid, "set repc 3");              // set repeat count: 3
pid_ioctl($pid, "set count 1 2 1");         // set count values: 1, 2 and 1
pid_ioctl($pid, "start");                   // start HT
while(pid_ioctl($pid, "get state"));
pid_close($pid);

?>

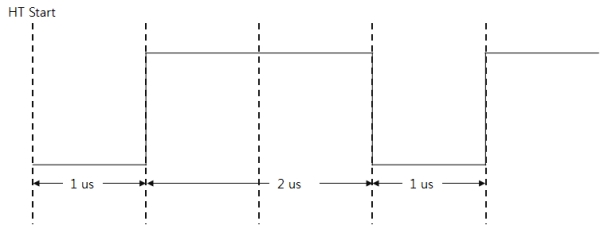

In the example above, three count values (T1, T2 and T3) are set and those are 1, 2 and 1 microsecond. The waveform of HT output is as follows:

ht_set_toggle_05
